HVAE-AD

1. Overview

In this repository, you find our proposed approach for anomaly detection in cybersecurity using temporal graphs, hyperbolic embedding, and graph neural networks which we called it HVAE-AD (Hyperbolic Variational Autoencoder for Anomaly Detection). You also find both Euclidean (for static and dynamic graphs) and hyperbolic baselines to campare with.

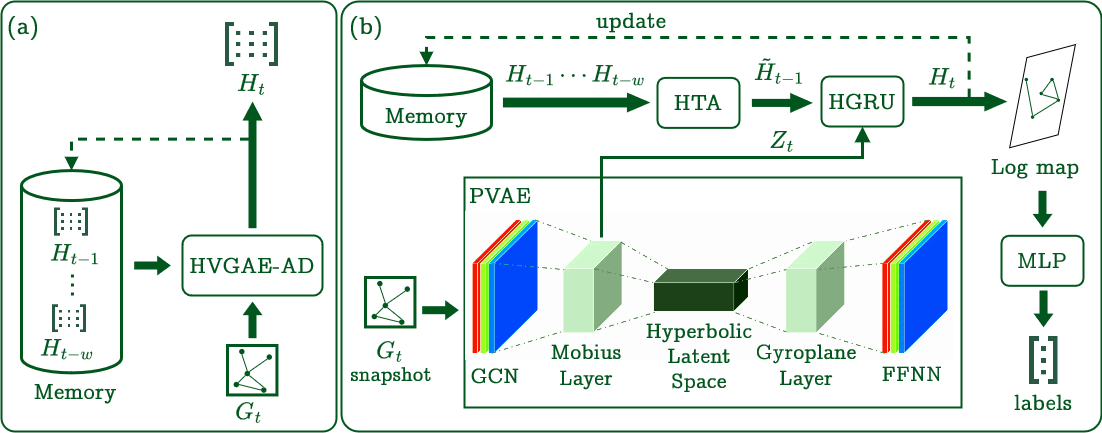

The overall architecture of our approach is illustrated in the figure below.

1.1 Models

1.2 Datasets

To evaluate our dynamic approach we generated snapshots from 03 different datasets:

2. Installation

git clone https://gitlab.liris.cnrs.fr/gladis/hvgae-ad.git

3. Usage

The snapshots of a given dataset have to be inside data/snapshots/.

• HVAE-AD: All the arguments can be tweaked inside the file: HVGAE_AD/config.py.

from HVGAE_AD import HVGAE_AD
directory = 'data/snapshots/'
model = HVGAE_AD(data_path=directory)
model.fit()
f1_score, accuracy, precision, recall, roc_auc, occupied_memory, processing_time = model.predict()

• DOMINANT: The graphs have to be located in the folders inside DOMINANT/datasets/. The names of the matrices have to be like matrix_0.pkl where 0 indicated the first repetition. This helps train the model multiple time with different graphs to test the model over multiple samples.

cd DOMINANT
python test.py

• LineGraphSage: Same as DOMINANT, the graphs have to be in LineGraphSage/datasets/ and the names has to be like name_0.pkl.

cd LineGraphSage
python test.py

• HGWaveNet:

cd HGWaveNet
python main.py

• HTGN: Make sure in HTGN/config.py the argument --model is HTGN.

cd HTGN
python main.py

• EvolveGCN: We used the implementation available in the source code of HTGN. Set the argument --model inside HTGN/config.py as EGCN.

cd HTGN/baselines
python run_evolvegcn_baselines.py

• VGRNN:

cd VGRNN
python VGRNN_detection.py

4. References

[1]:DOMINANT [2]:LineGraphSage [3]:HGWaveNet [4]:HTGN [5]:VGRNN [6]:EvolveGCN [7]:CIC-DDoS2019 [8]:CIC-Darknet2020 [9]:ToN-IoT
